High Efficiency.
High Quality.
Powering a Carbon-Neutral Energy Future
with Chiyoda's Electrolysis System
Establishing Sustainable
Business through Reliable
Electrolysis System
We enable customers to realize the full potential of hydrogen
through optimized energy
efficiency,
economics and operational reliability.
Backed by a proven cell stack technology and extensive
engineering expertise,
we turn hydrogen into a sustainable business value.
A World-Class System for Next-Generation Energy
Electrolysis System

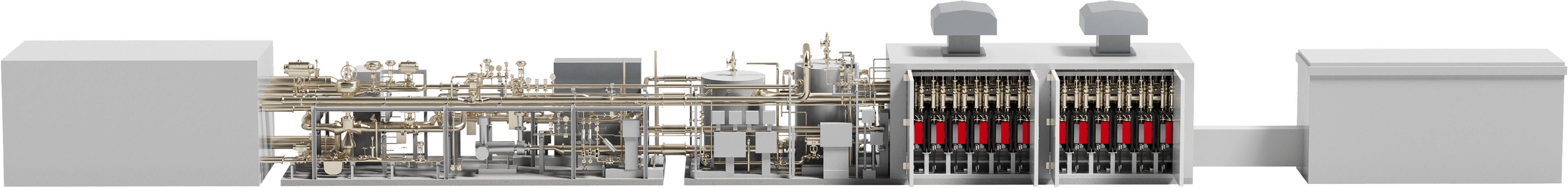

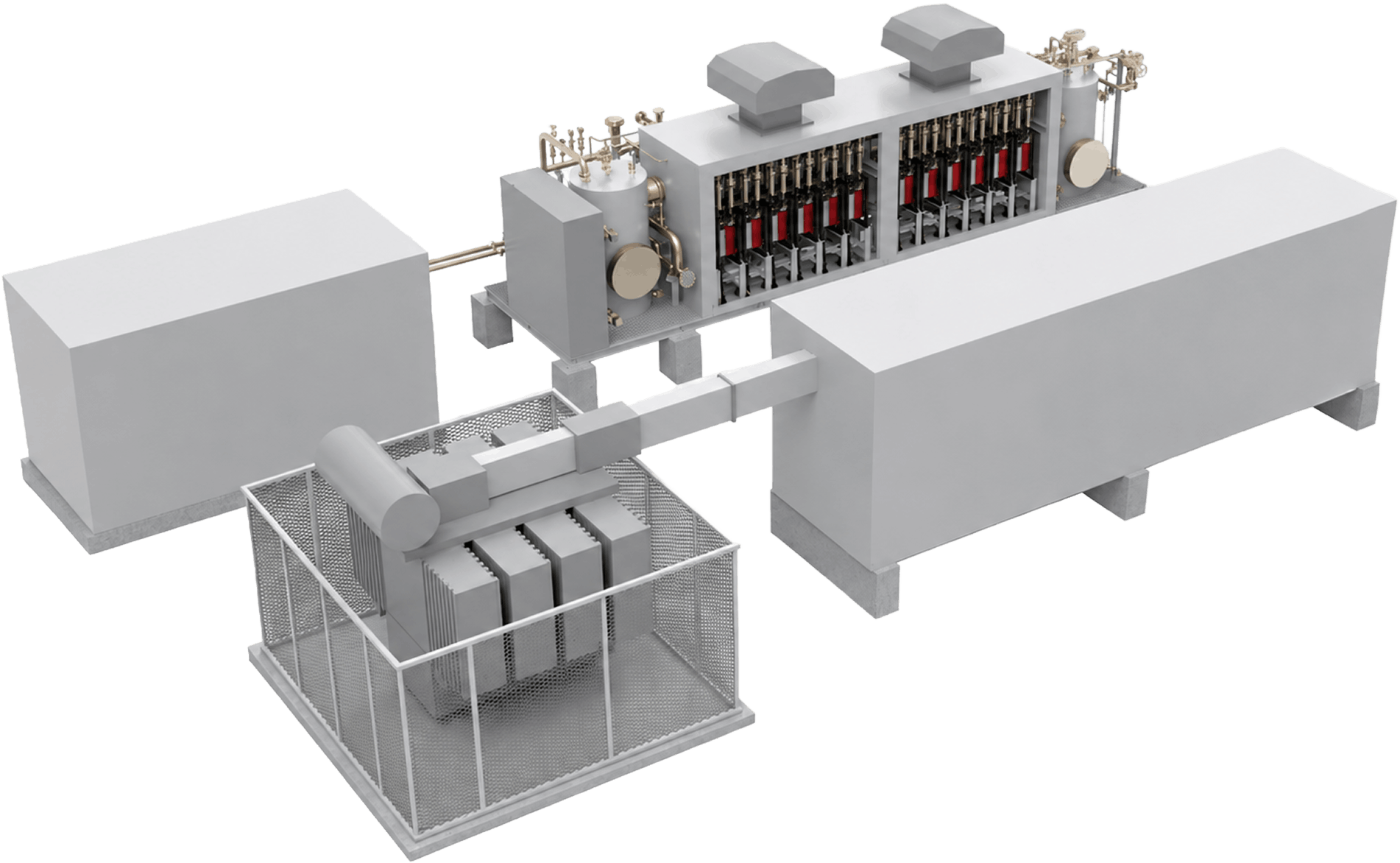

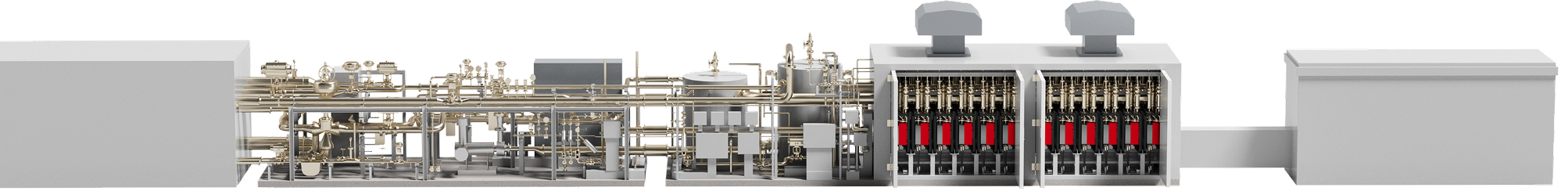

CTXE5000-2A
Designed primarily for medium-scale plant applications
123

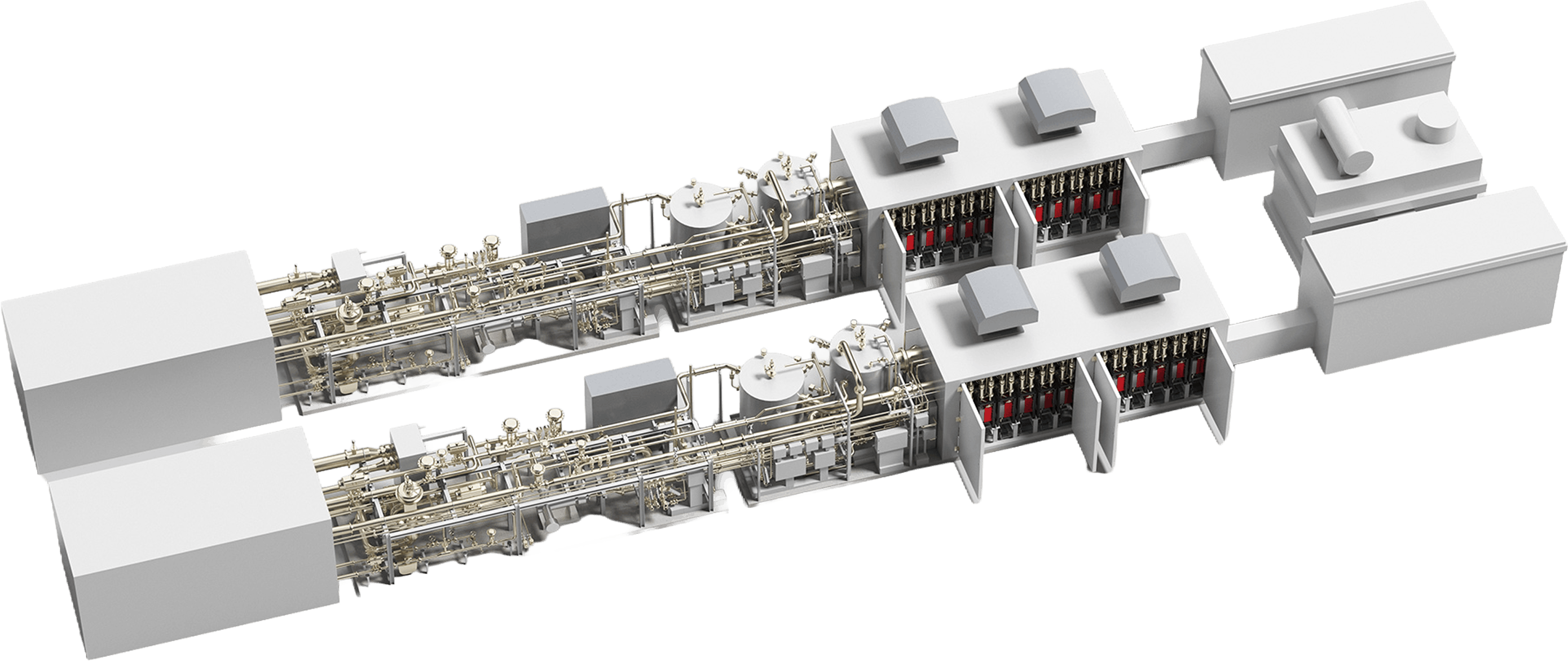

CTXE20000-2A
Designed primarily for large-scale plant applications
123
- 1
- Ion Exchanger
- 2
- MV Transformer
- 3
- Rectifier
CTXE
5000-2A
- Type
- PEM
- No. of Stacks
- 12
(400 kW/Stack × 12 pcs.) - Capacity
- 5 MW
- H₂ Nominal
Production Rate - Approx. 1,100 Nm3/h-H₂
(Approx. 100 kg/h-H₂) - H₂ Purity
(with dryer) - > 99.9 dry-mol %
contains saturated
water vapor
(ISO 14687 Grade D for Fuel Cell) - H₂ Outlet Pressure
- 2 barg
(0.2 MPa) - Efficiency
- AC (with BoP)
52 - 53 kWh/kg-H₂
CTXE
20000-2A
- Type
- PEM
- No. of Stacks
- 48
(400 kW/Stack × 24 pcs. ×2) - Capacity
- 20 MW
- H₂ Nominal
Production Rate - Approx. 4,400 Nm3/h-H₂
(Approx. 400 kg/h-H₂) - H₂ Purity
(with dryer) - > 99.9 dry-mol %
contains saturated
water vapor
(ISO 14687 Grade D for Fuel Cell) - H₂ Outlet Pressure
- 2 barg
(0.2 MPa) - Efficiency
- AC (with BoP)
52 - 53 kWh/kg-H₂
Electrolysis System

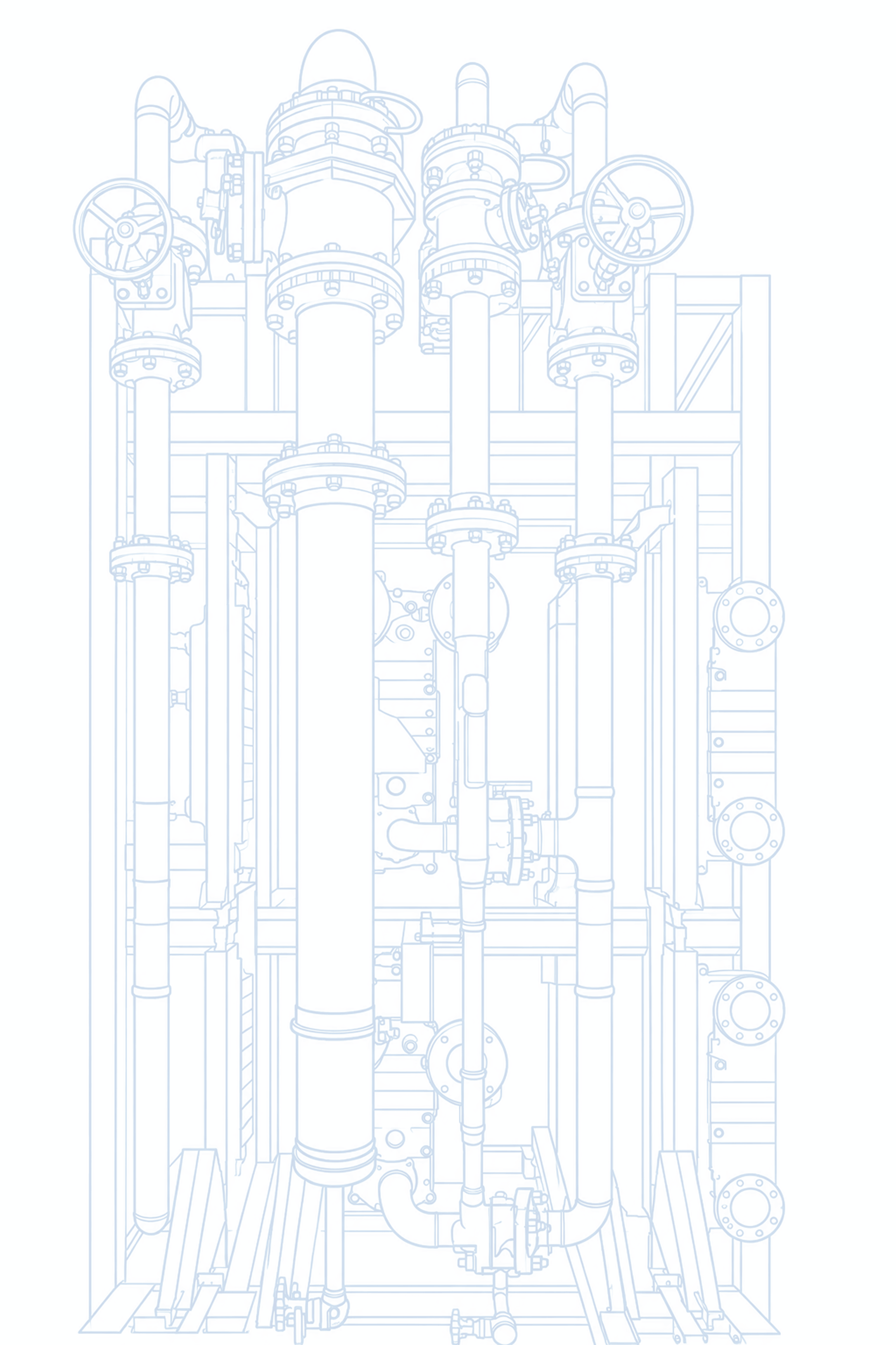

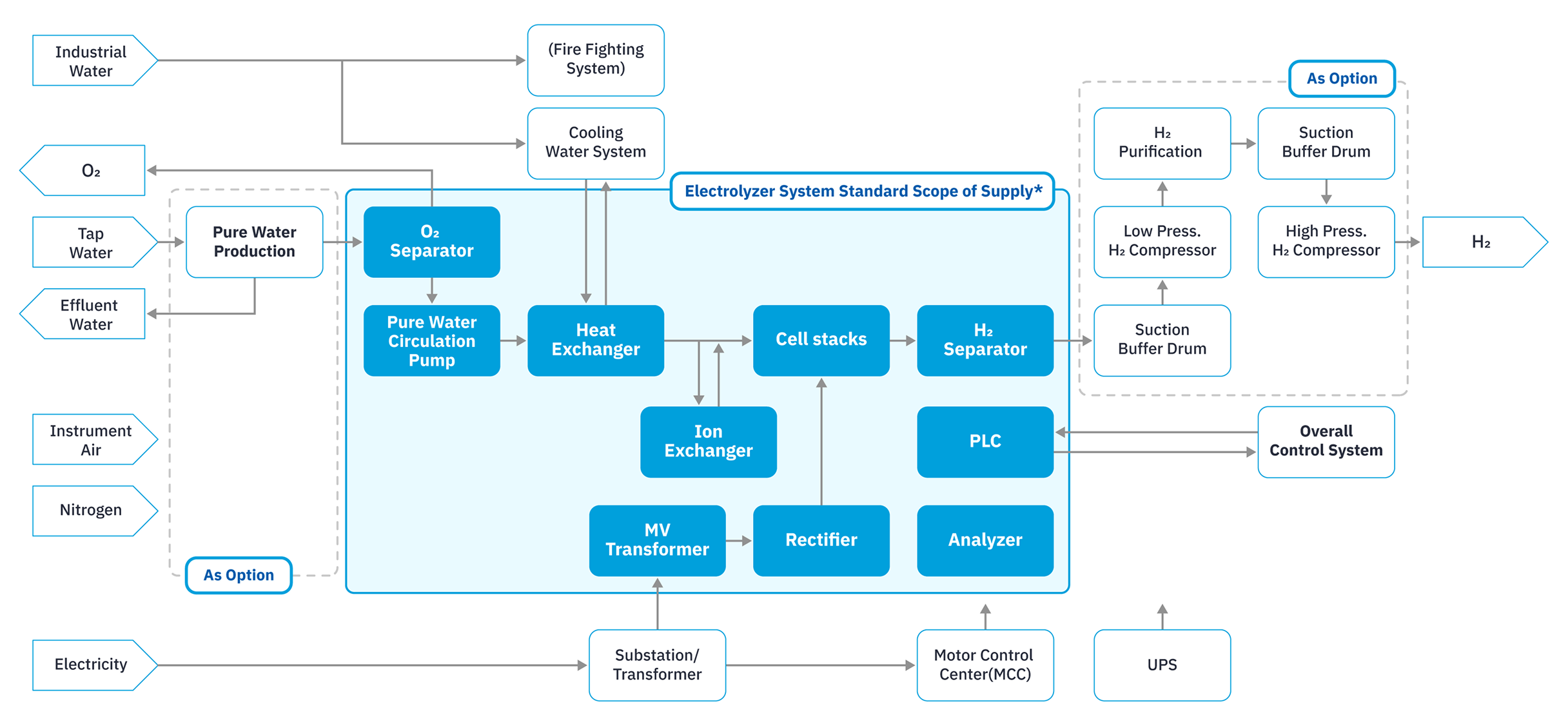

Block Flow Diagram
Beyond the standard scope of supply, Chiyoda also supports
complete plant solutions tailored
to customer requirements.
＊Standard scope of supply by Chiyoda
A Partnership with
Toyota Motor Corporation.
Proven Reliability through
Exemplary Partnership.
An electrolysis system born from the
strengths of two industry leaders

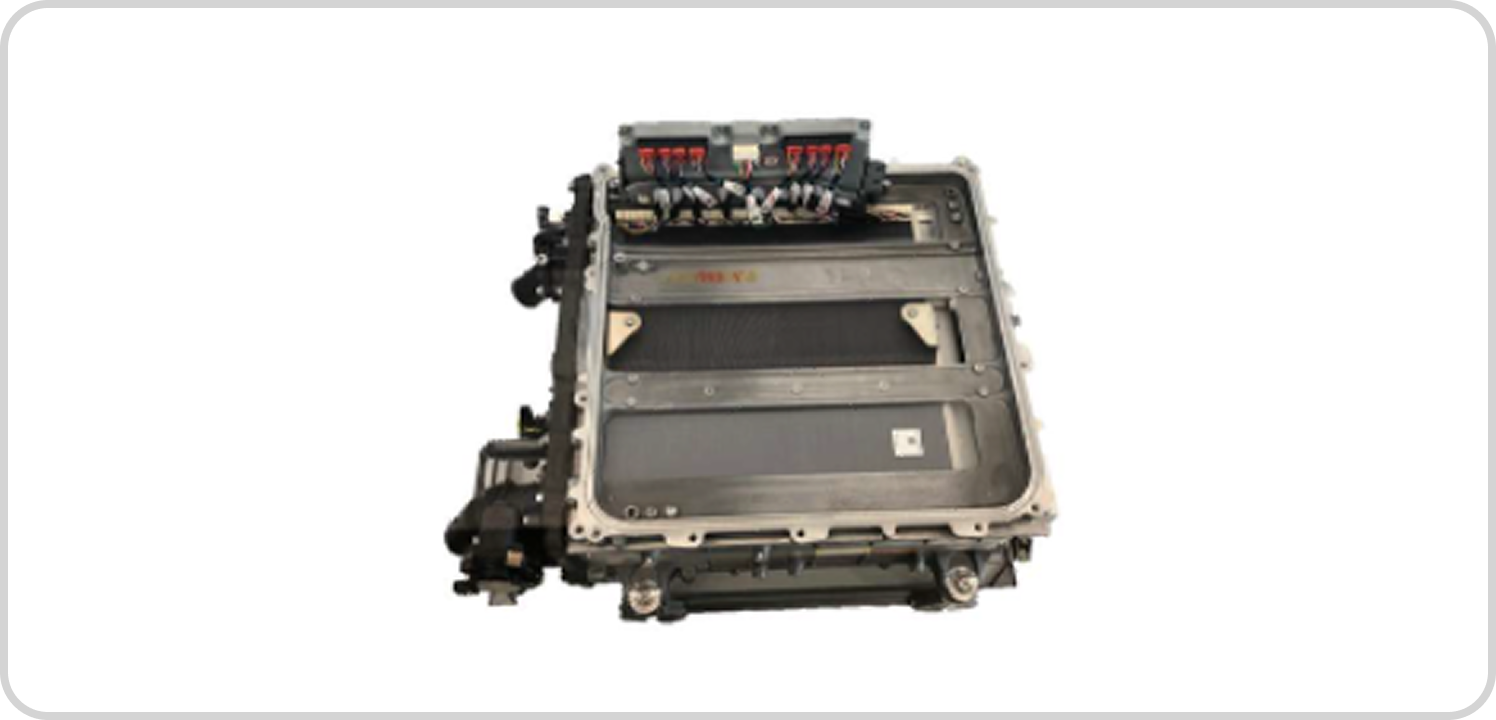

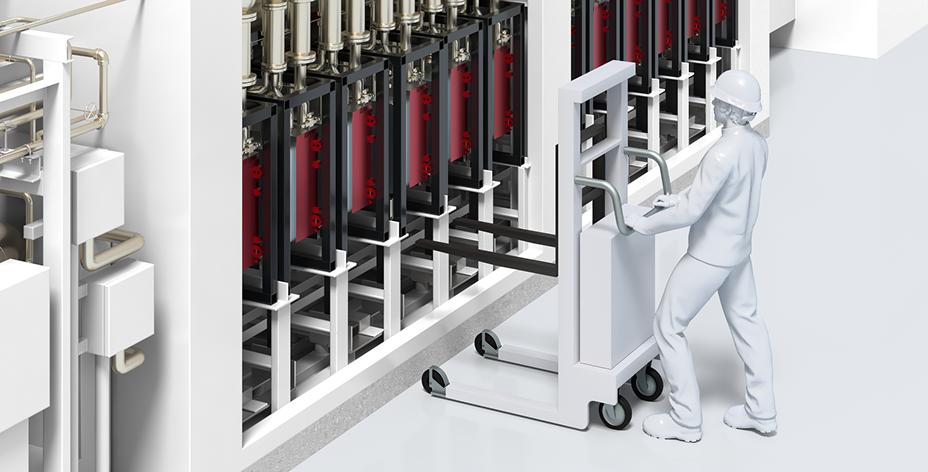

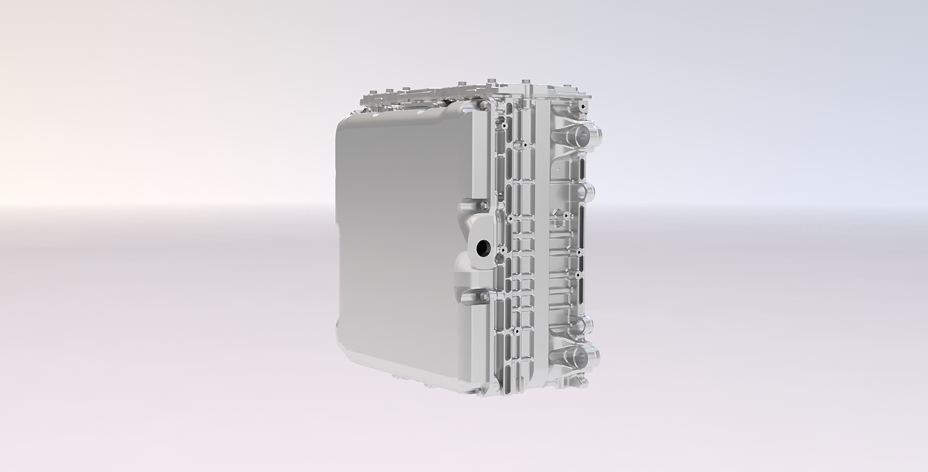

The electrolysis system combines Toyota Motor Corporation’s proprietary fuel cell-based high-efficient and compact cell stack, its quality management and mass-production technologies with Chiyoda’s proprietary plant engineering and modularization technologies.

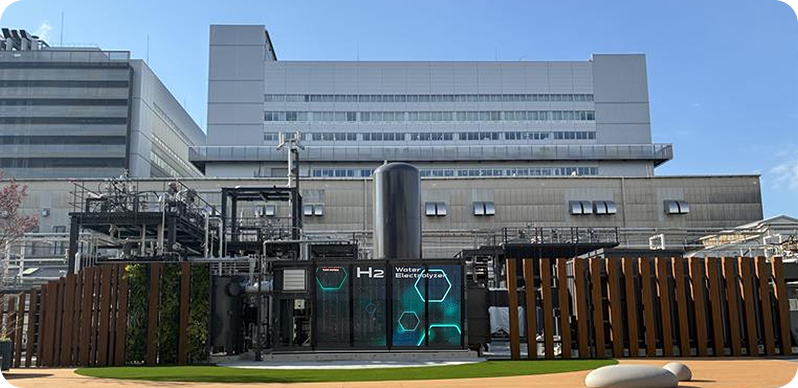

A 5MW commercial-demonstration unit at Toyota's Honsha Plant which has been launched in 2026 also supports service and maintenance training.
